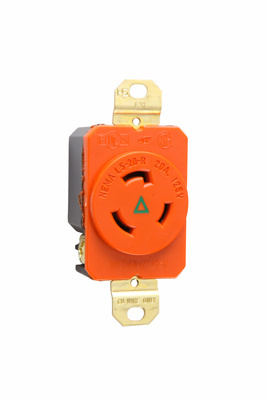

Pass & Seymour IGL520-R Turnlok Single Receptacle, 3wire, 20A 125V Isolated Ground

Manufacturer: Legrand Pass & Seymour | Catalog # IGL520R | QED Part # 416621
$61.31 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet
Turnlok Receptacle Single 3wire 20amp 125volt Isolated Ground

Technical Information

Amperage
20 Amp
Applications
Industrial
Conductor Size
18-1/0 AWG
Indoor Outdoor
Indoor
Material
Thermoplastic
NEMA
L5-20R
NEMA Rating
L5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Isolated Ground
Size
3.3 in
Standard
UL
Type
Duplex, Receptacles
Voltage
125 Volt
Wire Size
0-18 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007252354
Color
Black
Finish
Matte
Product UPC
78500725235
UNSPSC
39121403

Dimensions

Depth
1.19 Inch
Height
2.29 Inch
Warranty Length
1 yr
Width
1.61 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage in all 3 modes, 500V.
  • LED indicator light.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Certifications
  • cULus Listed
  • Federal Spec Listed
