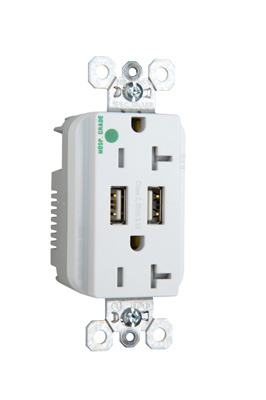

Pass & Seymour TR-8300HUSBW Hospital-Grade USB Charger with Tamper Resistant White 20 Amp Duplex Receptacles

Manufacturer: Legrand Pass & Seymour | Catalog # TR8300HUSBW | QED Part # 4162324
$57.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Brochure Primary Spec Sheet Installation / Instruction Manual
Designed for the healthcare market and capable of withstanding heavy use due to its UL Hospital Grade certification. Features include an improved overall 3.1A USB charging capability, auto-ground clips, zinc-plated ground terminal screw, as well as triple-wipe brass contacts for lasting retention. The screw-pressure-plate back wiring makes installation fast and easy. Also available in black, green, gray, ivory, light almond, nickel, red and white.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Body Material
Nylon
Conductor Size
14-10 AWG
Face Material
Polycarbonate
Grade
Hospital
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Tamper-Resistant,USB-Charging
Temperature Rating
-40 degrees C to 60 degrees C
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
10 AWG
Wire Type
Stranded and Solid Copper

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007031560
Color
White
Finish
Matte
Product UPC
78500703156

Dimensions

Depth
1.392 Inch
Height
2.677 Inch
Warranty Length
1 yr
Width
1.693 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Vietnam
Features
  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices
  • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
  • Multiple color options available.
  • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
  • Stainless steel auto-ground clips assure positive ground.
Certifications
  • UL Listed
  • cULus Listed
  • Federal Spec Listed
