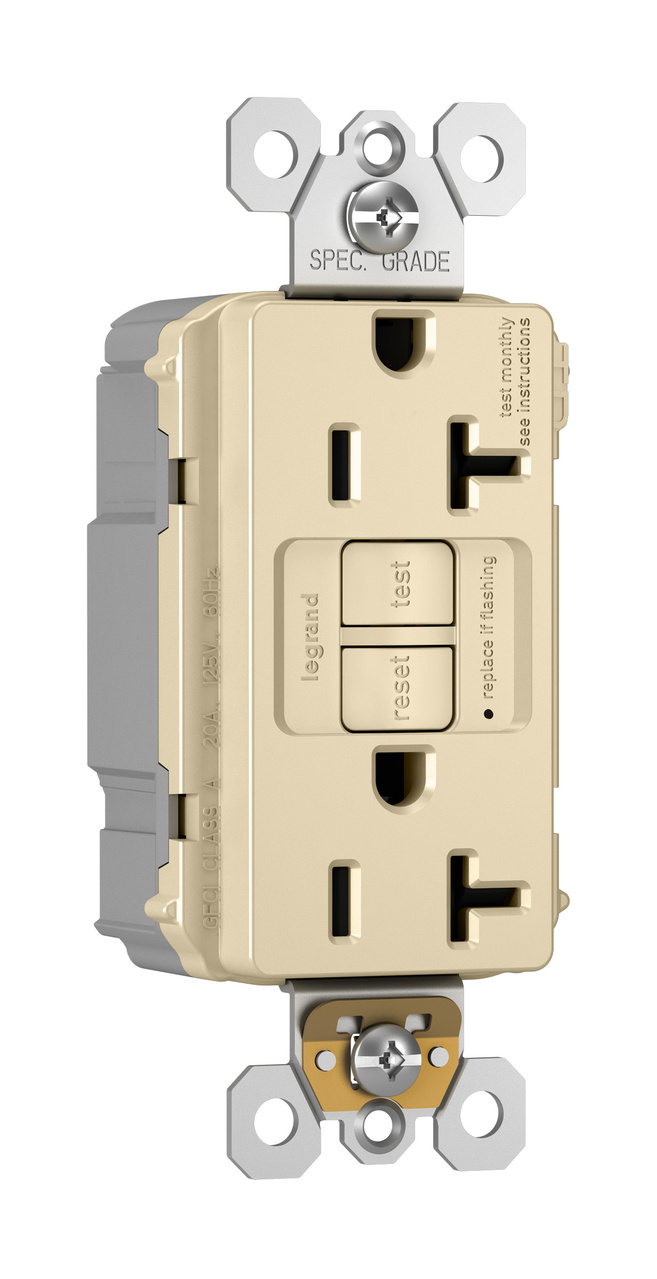

Pass & Seymour PT2097-TRI 20A 125V Spec-Grade Tamper-Resistant Self-Test GFCI Receptacle - Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # PT2097TRI | QED Part # 4150604
$63.18 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet Installation / Instruction Manual
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail®- information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial
Connection Type
Built-in Connector
Frequency
60 Hz
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplatic
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Tamper-Resistant
Tc Connection
Built-in Connector
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
PLUGTAIL® Specification Grade Tamper-Resistant 20A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007048490
Color
Ivory
Environmental Conditions
95 PCT
Product UPC
78500704849

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
Certifications
  • cULus Listed
