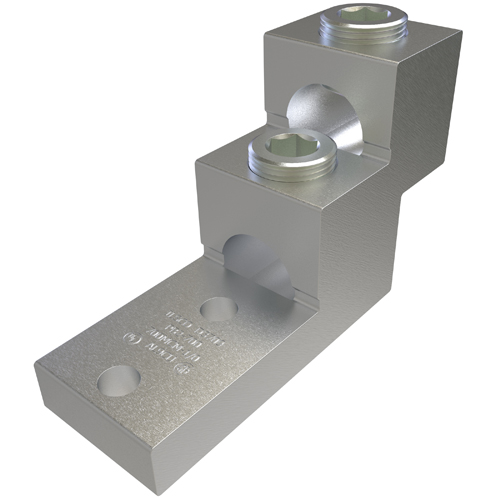

Product image for Ilsco PB2-750 Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 2 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco PB2-750 Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 2 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PB2-750 | QED Part # 3561148
$186.77 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 20 to 32 days
Primary Spec Sheet
ILSCO Panelboard Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1.375 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 1/0 Str, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
3/8 in
Conductor Material
Aluminum,Copper
Conductor Size
1/0 AWG-750 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
13/32 in
Number of Conductors
2
Number of Holes
2 Hole
Number of Ports
2
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PB:PANELBOARD STACK LUG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669195408
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366919540
Weight
0.97 lb

Dimensions

Height
2.96 Inch
Length
4.91 Inch
Width
1.688 in
