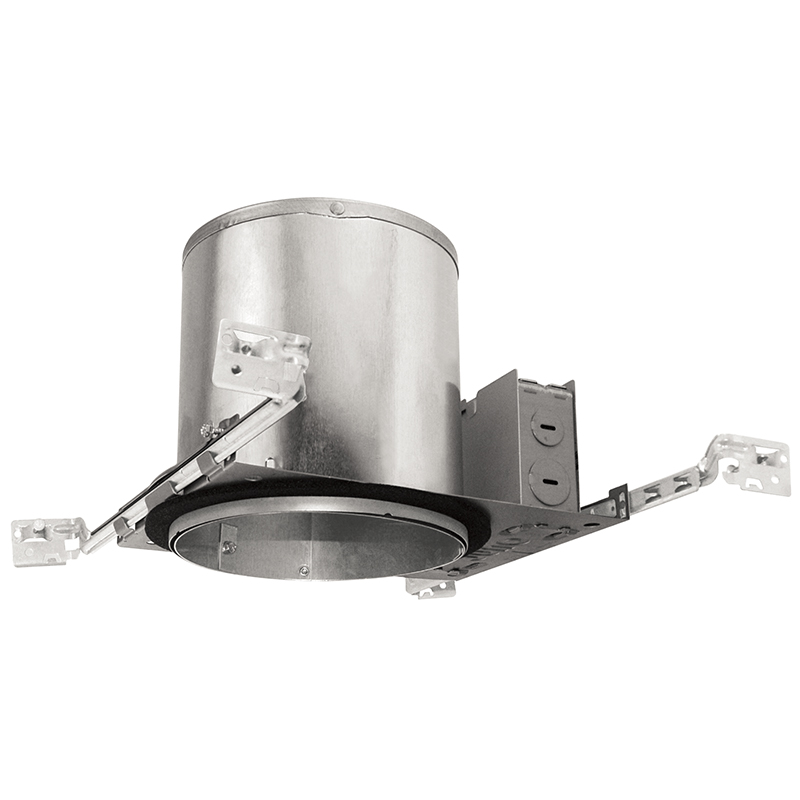

Product image for JNO IC23-LEDT24 6IN T24 IC HSG
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

JNO IC23-LEDT24 6IN T24 IC HSG

Manufacturer: Juno Lighting | Catalog # IC23LEDT24 | QED Part # 3560395
$18.67 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
The Juno IC23-LEDT24 6-inch dedicated LED housing for use with Juno retrofit LED trim modules offers an energy-efficient, Air-Loc® sealed housing that stops exfiltration and infiltration of air, reducing heating and cooling costs without extra gaskets. The IC-rated housing can also be completely covered with insulation.

Technical Information

Applications
For Recessed Commercial, Residential, Damp Location, Wet Location with Appropriate Trims, IC Rated, Air-Loc
Lamp Type
LED
Number of Lamps
1
Type
Direct Light Outlet, Symmetric, IC
Voltage
120 Volt

Manufacturer Information

Brand
Juno Lighting
Sub Brand
Juno

General Product Info

12-Digit UPC
661209311061
Color
Matte Gray
Fixture Type
LED
Housing Material
Aluminum
Product UPC
66120931106
Shape
Round

Dimensions

Diameter
152.4 mm
Width
190.5 mm
Description
  • UL, cUL Listed for through-branch wiring, maximum 8 No. 12 AWG 90 degrees C branch circuit conductors: 4 in, 4 out
  • Housing is vertically adjustable to accommodate up to a 1-inch ceiling thickness
  • Real Nail® 3 bar hangers feature patented break-away bars for tight joist spacing
  • Compatible with 6-inch Juno retrofit LED trim modules
  • Meets high efficacy requirements of California T24
  • Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
  • Non-screw base 120V plug-in connector
  • Pre-wired junction box provided with five 1/2-inch and one 3/4-inch knockouts, 4 non-metallic sheathed cable connectors, and ground wire screw
