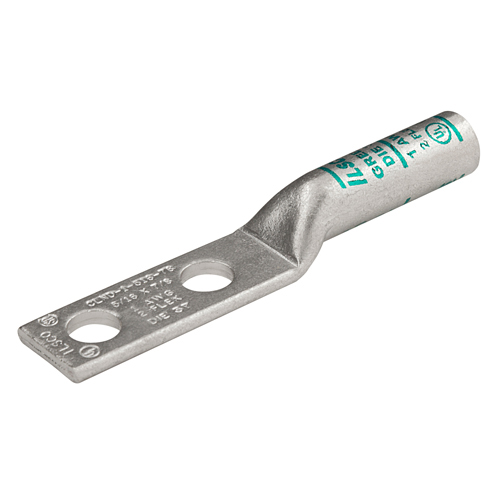

Product image for Ilsco CLND-1-516-78 SureCrimp® Copper Compression Lug, Conductor Size 1, 2 Holes, 5/16in Bolt Size, 7/8in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco CLND-1-516-78 SureCrimp® Copper Compression Lug, Conductor Size 1, 2 Holes, 5/16in Bolt Size, 7/8in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLND-1-516-78 | QED Part # 3453386
$17.24 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 5/16 in, mounting hole spacing 0.875 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 1 Str, no sight window, Square tang end, flex conductor range 2 G,H,I,K,M,DLO, rated for 35 kV, die color code Green, primary color Silver, die index I-37,

Technical Information

Applications
Copper Compression Lug
Barrel Length
1.375 in
Barrel Type
Long
Bolt Size
5/16 IN
Color Coding
Green
Conductor Material
Copper
Conductor Size
1 AWG
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.343 in
Number of Holes
2 Hole
Size
L:3.392;W:0.673;H:0.503 IN
Standard
UL Specifications: UL 486A-B UL 467,NEBS Rating: LEVEL 3,UL File Number: E6207,CSA File Number: LR-29601
Strip Length
36.499 mm
Temperature Rating
90 degrees C
Type
CLND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669634983
Color
Green,Silver
Product UPC
78366963498
Weight
0.070 lb

Dimensions

Height
0.53 Inch
Inside Diameter
0.359 in
Length
3.392 Inch
Outside Diameter
0.468 in
Width
0.673 in
