Ilsco T3A2-800N Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-350, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-800N | Quality Electrical Distribution (QED)

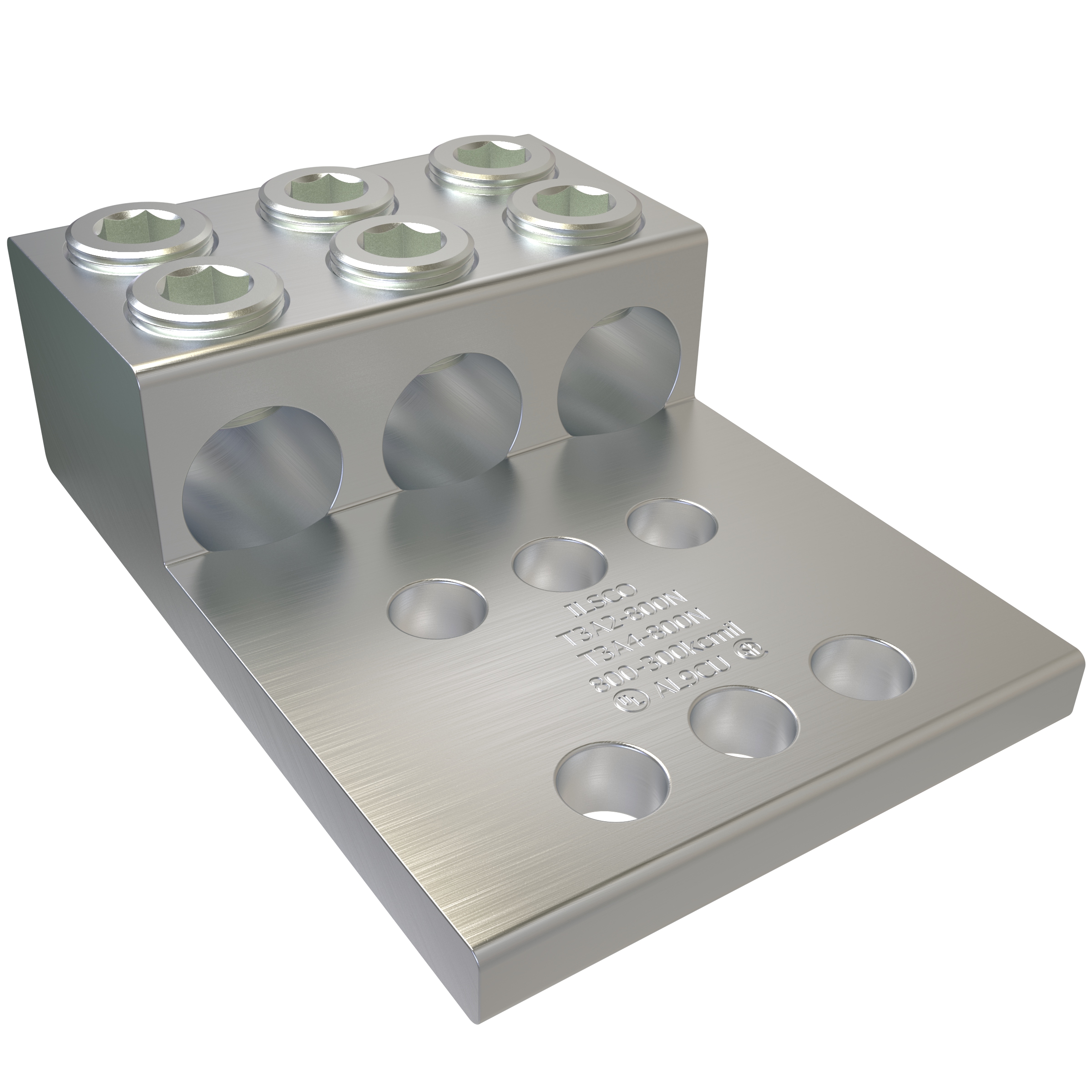

Product image for Ilsco T3A2-800N Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-350, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-800N
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco T3A2-800N Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-350, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-800N

Manufacturer: Ilsco | Catalog # T3A2-800N | QED Part # 3453081
$349.74 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-350, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-800N

Technical Information

Applications
Mechanical Lug, Three Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Conductors
3
Number of Holes
6 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
T3A:3 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669900606
Color
Silver
Finish
Tin Plated
Product UPC
78366990060
Weight
1.765 lb

Dimensions

Height
1.813 Inch
Length
5.97 Inch
Width
4.125 in
