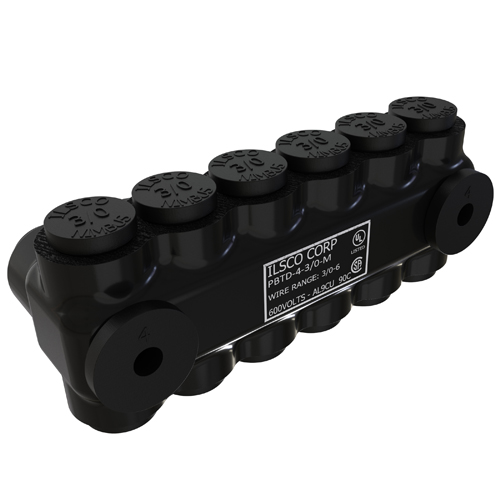

Image thumbnail 1
To:
CC:

ILSCO PBTD-4-3/0-M UL CSA Listed 3/0-6 AWG 4-Port Aluminum Insulated Mountable Mechanical Connector

Manufacturer: Ilsco | Catalog # PBTD-4-3/0-M | QED Part # 3399693
$228.85 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus Mountable Insulated Multi-Tap Connector Dual Side Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting hole spacing 3.89 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 3/0 Str - 6 Str, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 1/4 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
225 Amp
Applications
Mountable Insulated Multi-Tap Connector Dual Side Entry
Conductor Material
Aluminum,Copper
Conductor Size
6-3/0 AWG
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.265 in
Number of Conductors
4
Number of Holes
2 Hole
Number of Ports
4
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
Insulated, Mountable, PBTD
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669080940
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366908094
Weight
0.551 lb

Dimensions

Height
2.019 Inch
Length
4.92 Inch
Width
1.965 in
