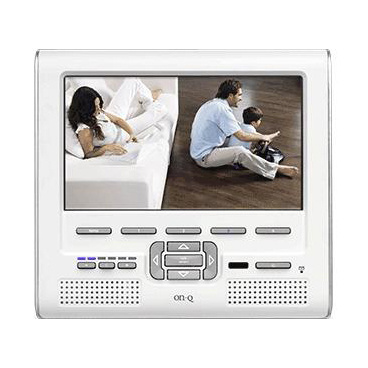

On-Q HA5000-WH 7 Inch White LCD Console

Manufacturer: Legrand Pass & Seymour | Catalog # HA5000-WH | QED Part # 3377501
$966.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Installation / Instruction Manual Primary Spec Sheet
The 7" LCD Console features a simple graphic user interface that allows control of camera, multi-room audio, intercom and messaging functions as part of the Unity Home System. As part of an On-Q Camera System it allows viewing of up to four camera feeds. The console mounts in a standard triple gang box and installs easily via Cat 5 wiring with convenient RJ45 connections. The LCD Console is available in four attractive Studio colors.

Technical Information

Amperage
0.75 Amp
Cable Size
24 AWG Solid
Cable Type
Category 5e UTP
Connection Type
(1) RJ45
Material
ABS Plastic
Mounting Type
3 Gang Wall Box
Temperature Rating
0 - 55 degrees C
Voltage
24 VDC

Manufacturer Information

Brand
Legrand

General Product Info

12-Digit UPC
804428027232
Color
White
Product UPC
80442802723
Weight
4 lb

Certifications and Compliance

Country of Origin
China
Features & Benefits
  • 7\" LCD screen with a simple push button interface to select desired input.
  • Attractive design complements the home and matches other On-Q devices in the Studio design.
  • Mounts in a standard triple gang box and installs easily via Cat 5 wiring with convenient RJ45 connections.
  • Up to four video feeds available with on-board sequencing of camera images.
  • Controllable through an On-Q IR remote control.
