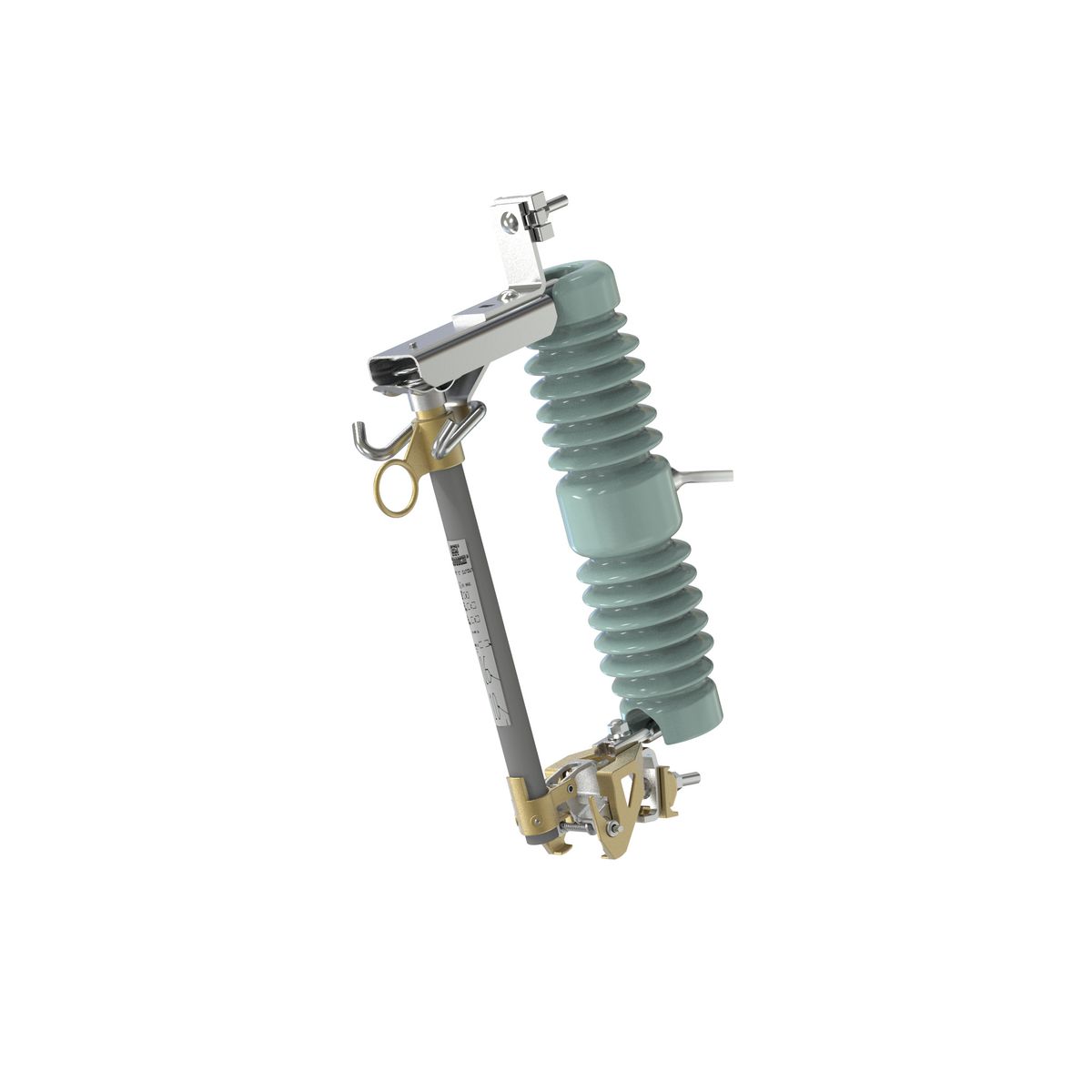

Hubbell Power CP710211-P-B 100 Amp 27 kV 125 kV BIL Polymer Type C Standard Cutout

Manufacturer: Hubbell Power Systems | Catalog # CP710211PB | QED Part # 3252125
$401.63 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
27 kV, 125 kV BIL, Standard Type C Polymer Cutout with a 100A, 8kAIC fuseholder, parallel-groove connector and a NEMA "B" crossarm bracket.

Technical Information

Amperage
100 Amp
Applications
Distribution
Current
100 Amp
Fuse Type
NEMA B
Material
Polymer
Material Type
Standard
Max Voltage
27 kV
Size
17.1 in (434mm)
Tc Connection
Parallel-groove clamp (#6 solid thru 4/0 ACSR (250kcmil))
Type
Cutout
Voltage
27 kV
Wattage
50/60 Watt

Manufacturer Information

Brand
Chance
Sub Brand
Chance

General Product Info

12-Digit UPC
096359383581
Product UPC
09635938358
Weight
10.741 lb

Dimensions

Height
5 Inch
Length
19-3/4 Inch
Width
13.250 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Fully Compliant with ANSI/IEEE C37.41 & C37.42 2016
  • Interchangeable with ABB Type ICX & S&C(MPS) Type XS
  • Single Vent Solid Cap Design
  • Uses Universal Style Fuse Links
  • Synthetic Arc Quenching Fuse Holder Liner Material
  • ESP ( Enhanced Silicone Polymer ) Insulating Material
  • TDG ( Thermal Diffusion Galvanization ) Insulator Assembly Castings
