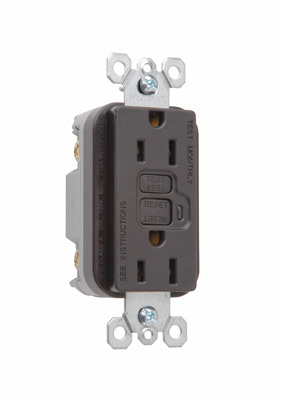

Product image for Pass & Seymour 1595 Trademaster®/Spec Grade GFCI Receptacle, 15A 125V - Brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour 1595 Trademaster®/Spec Grade GFCI Receptacle, 15A 125V - Brown

Manufacturer: Legrand Pass & Seymour | Catalog # 1595 | QED Part # 3158004
$27.17 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available.

Technical Information

Amperage
15 Amp
Grade
Specification
NEMA
5-15R
NEMA Rating
NEMA 5-15R
Style
Decorator
Type
Decorator
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
TradeMaster, SafeLock

General Product Info

12-Digit UPC
785007422863
Color
Brown
Product Series
TradeMaster
Product UPC
78500742286

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in

Certifications and Compliance

Country of Origin
China
Features & Benefits
  • Two back wire holes per terminal.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Extra-long strap.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Supplied with matching TP26 nylon wall plate.
  • Dual-direction test and reset buttons.
  • Tri-drive screws.
  • Button colors match the device face.
  • For covering patents, see www.legrand.us/patents.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Class A rated GFCI.
  • High-impact-resistant thermoplastic construction.
  • Ground screw has a back wire clamp for easy installation.
  • Trip indicator light (red LED).
  • 10kA short circuit rating.
  • FSUL Listed (Federal Specification WC596).
Available Options
  • TradeMaster®/Spec Grade 15A Duplex GFCI, Red
  • TradeMaster®/Spec Grade 15A Duplex GFCI, Light Almond
  • TradeMaster®/Spec Grade 15A Duplex GFCI, Brown
  • TradeMaster®/Spec Grade 15A Duplex GFCI, White
  • TradeMaster®/Spec Grade 15A Duplex GFCI, Ivory
  • TradeMaster®/Spec Grade 15A Duplex GFCI, Gray
  • TradeMaster®/Spec Grade 15A Duplex GFCI, Black
