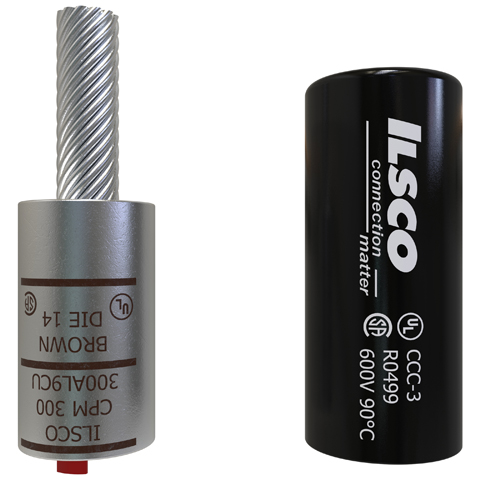

Product image for Ilsco CPM-300 Copper Compression Pigtail Adaptor, Conductor Size 300, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco CPM-300 Copper Compression Pigtail Adaptor, Conductor Size 300, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-300 | QED Part # 2802064
$81.78 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 300 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,

Technical Information

Applications
Terminating Connector
Barrel Length
2.062 in
Barrel Type
Standard
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
300 kcmil
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum/Copper
Material
Copper
Number of Conductors
1
Size
L:4.625;W:1.335;H:1.335 IN
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008586
Color
Silver
Product UPC
78366900858
Weight
0.199 lb

Dimensions

Height
1.335 Inch
Inside Diameter
0.65 in
Length
4-5/8 Inch
Outside Diameter
1.155 in
Width
1.335 in
