Pass & Seymour PS15AC1-CSL 1pole Lighted Switch, Back & Side Wire, 15A 120/277V - Clear | Quality Electrical Distribution (QED)

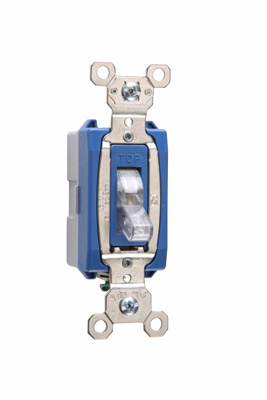

Product image for Pass & Seymour PS15AC1-CSL 1pole Lighted Switch, Back & Side Wire, 15A 120/277V - Clear
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour PS15AC1-CSL 1pole Lighted Switch, Back & Side Wire, 15A 120/277V - Clear

Manufacturer: Legrand Pass & Seymour | Catalog # PS15AC1CSL | QED Part # 2460608
$59.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet
1pole Lighted Switch, Back & Side Wire, 15amp 120/277volt, Clear

Technical Information

Amperage
15 Amp
Applications
Commercial,Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Size
3.3"
Switch Type
Toggle
Type
Switch
Voltage
120 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195699
Color
Clear
Finish
Clear
Product UPC
78500719569
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-grounded clip assures posititive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
