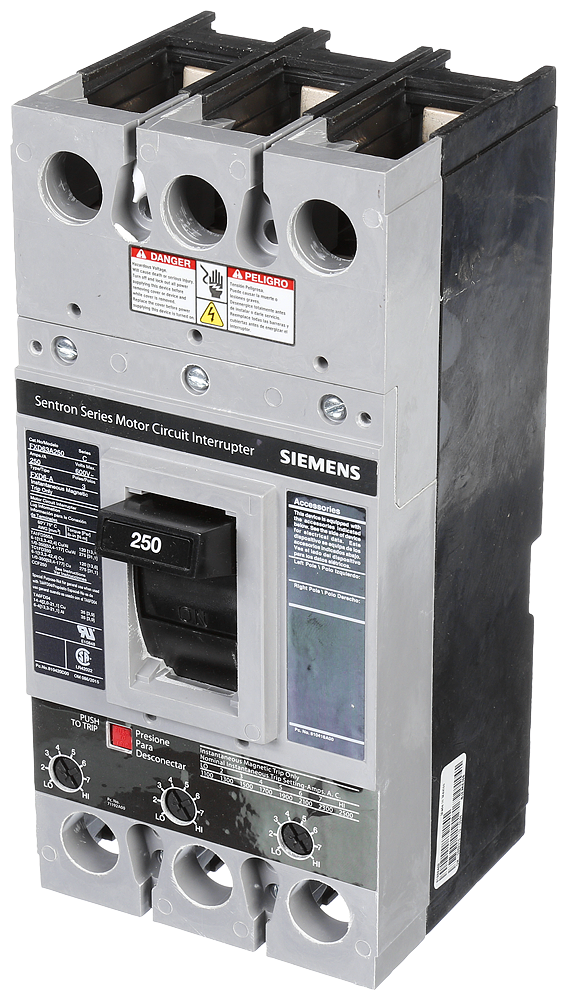

Product image for Siemens FXD63A250 3-Pole 250 Amp 600 VAC 22 kA ETI Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens FXD63A250 3-Pole 250 Amp 600 VAC 22 kA ETI Circuit Breaker

Manufacturer: Siemens | Catalog # FXD63A250 | QED Part # 158861
$2,315.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 250A, Non-interchangeable, Standard Instantaneous Range ETI Breaker, Standard IC Rating

Technical Information

Actuator
Varying
Applications
Standard Range ETI Breaker
Current
250 Amp
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40 degrees C
Tc Connection
N/A
Trip Range
1100-2500
Trip Type
Thermal Magnetic
Type
FXD6, Standard
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643212282
Product UPC
78364321228
Weight
8.650 lb

Dimensions

Height
11.3 Inch
Length
11.3 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Mexico
