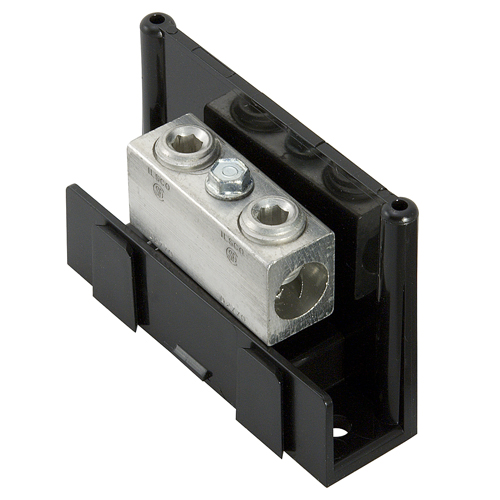

Image thumbnail 3
To:
CC:

Ilsco PDA-11-2/0-1 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 2/0-14, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, Adder Block, UL, CSA

Manufacturer: Ilsco | Catalog # PDA-11-2/0-1 | QED Part # 1552189
$44.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 2.25 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 2 conductors, Drive Type Main 3/16 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles, 1 ports per pole primary, 1 ports per pole secondary,

Technical Information

Amperage
175 Amp/Pole
Applications
Tap Connector
Conductor Size
14-2/0 AWG
Connection Type
Screw
Enclosure
Lexan
Material
Aluminum
Number of Conductors
2
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Small
Voltage
600 Volt

Packaging

Pkg Qty
12

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669711349
Color
Black
Finish
Tin Plated
Product UPC
78366971134
