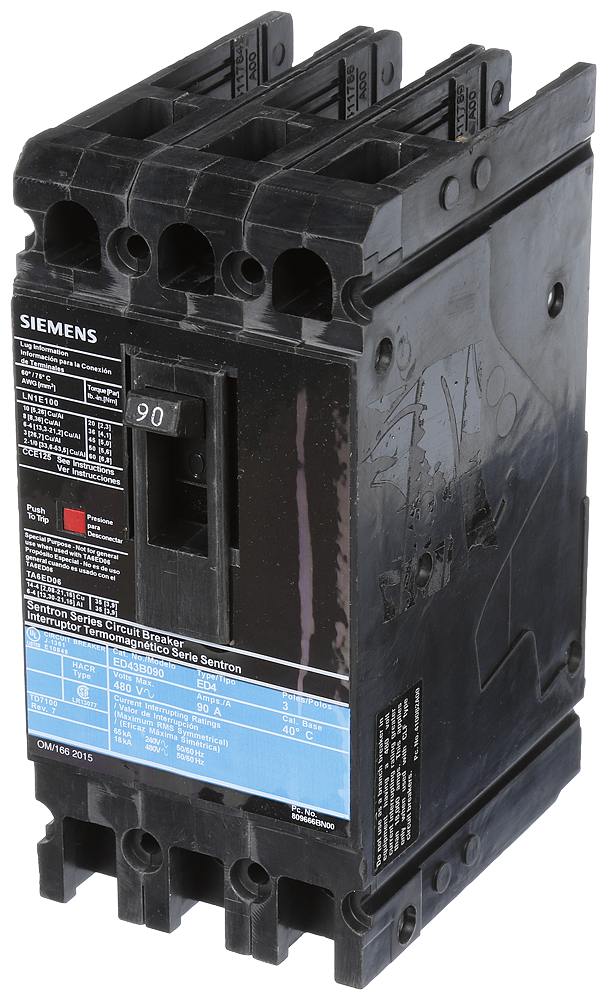

Siemens ED43B090 3-Pole 90 Amp 480 VAC 18 kA Circuit Breaker Lug

Manufacturer: Siemens | Catalog # ED43B090 | QED Part # 1550013
$687.58 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 90A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying
Amperage
90 Amp
Applications
Standard 40C Breaker
Current
90 Amp
Enclosure
Varying
Frame
ED
Frequency
50/60 Hz
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40 degrees C
Standard
HACR
Tc Connection
N/A
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
ED4
Voltage
250 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643209473
Product UPC
78364320947
Weight
0.340 lb

Dimensions

Height
6 Inch
Length
7-1/2 Inch
Width
3.850 in

Certifications and Compliance

Country of Origin
Mexico
